Eleven Thousand Welds Behind One Reliable Heat Exchanger

Somewhere on the Texas Gulf Coast, a heat exchanger spent decades doing one of the least glamorous jobs in the petrochemical industry. It condensed propylene refrigerant. That's it. Day after day, year after year, it took hot compressed vapor and turned it back into liquid so the refrigeration cycle could run again.

Nobody wrote articles about it. Nobody took pictures of it. It just worked. Which, in this business, is the highest compliment there is.

And then, like every machine eventually does, it reached the end of its life. No emergency. No dramatic 2 a.m. phone call. The plant's engineers simply looked at their old workhorse and made the call every facility eventually makes: it's time.

That's where we came in.

Building Equipment That Lasts for Decades

Here's the truth about our industry that doesn't make it into many marketing brochures: most of what keeps a petrochemical plant running isn't cutting-edge. It's shells, tubes, tubesheets, and welds. Ordinary equipment that has to work every single day, for decades, in one of the harshest environments on Earth.

The replacement condenser didn't need to be innovative. It needed to be dependable. And building genuinely dependable equipment that a plant can install and then forget about for twenty years, turns out to be one of the hardest things in manufacturing.

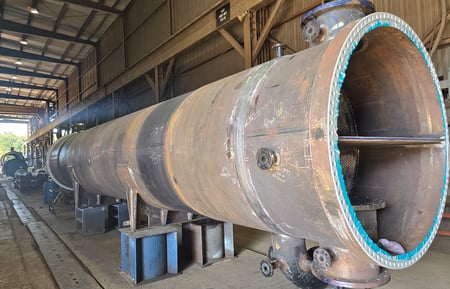

The spec sheet reads like a monument to the unglamorous: a 65-336 TEMA Type NEN shell & tube exchanger, 32 feet long, 113,800 pounds, packed with 2,777 carbon steel tubes. The tube material (SA-179 seamless carbon steel) isn't exotic. It's the industry standard, and it's the standard for a reason: it transfers heat beautifully, and it welds like a dream. The only twist is the low-fin profile: thousands of tiny precision-formed fins on every tube that multiply the heat transfer surface without growing the footprint. More cooling, same shell.

Holding all of it together: two massive tubesheets forged from SA-350 LF2 carbon steel, impact-tested for the cold condition's refrigeration service dishes out. Heavy forgings doing the quiet, essential work of anchoring three thousand tubes for the long haul.


More than 11,000 Welds. One Standard.

But here's the number that tells the real story of this project.

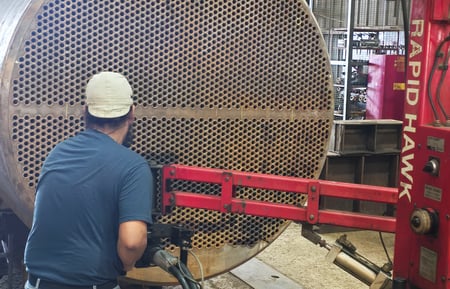

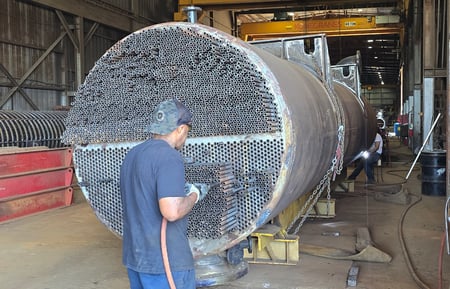

Every one of those 2,777 tubes had to be joined to the tubesheets with a two-pass strength weld, then mechanically expanded into place: belt and suspenders, the most reliable tube joint method in the industry. Two ends per tube. Two passes per end.

Do the math and you get more than 11,000 individual tube-end welds, on this one exchanger.

There's no shortcut to 11,000 welds. It's the same weld, executed to the same standard, thousands of times over. That consistency is the craft.

Built Under One Roof

That's what 36 weeks in our Beaumont shop looks like. Not one heroic moment, thousands of small, disciplined ones. Tubesheets drilled with near-three-thousand-hole precision. Welds inspected. The bundle assembled, tested, and hydro'd. And because engineering, machining, NDE, testing, blasting, and coating all happen under our own roof, a 36-week schedule stays a 36-week schedule. When you don't wait on outside shops, you control the calendar.

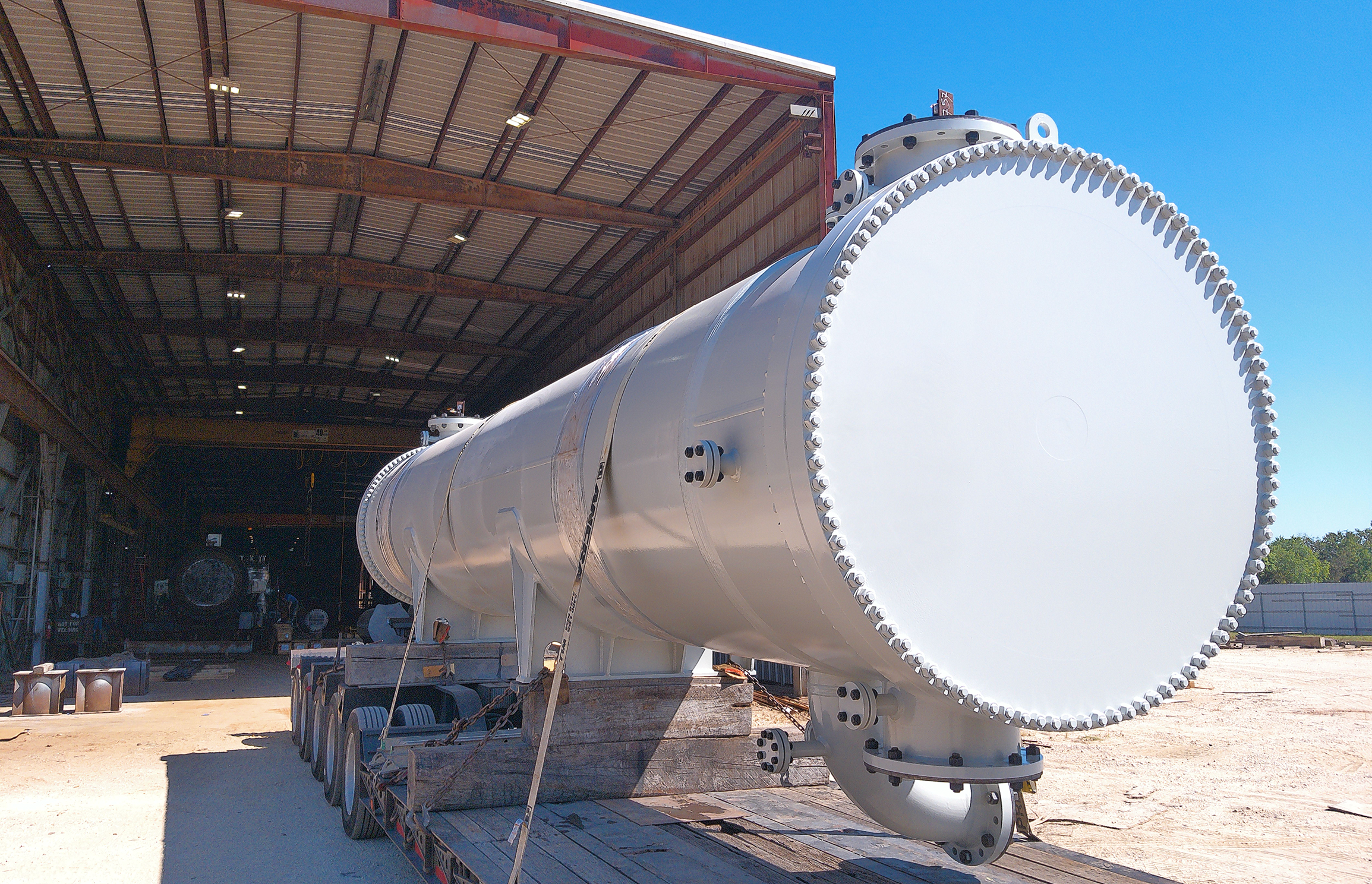

The last step was armor. The Gulf Coast, with its humidity, salt air, and relentless sun, is brutally hard on steel. So, before this exchanger left our facility, it received more than 30 gallons of protective coatings in a three-coat system, finished with Carboline Carbothane® 134 HG polyurethane. Corrosion, chemical, abrasion, and UV protection measured in decades, not years.

We like to say the best coating job is the one nobody ever notices, because the equipment never rusts.

Built to Keep Working

By now, this exchanger is doing exactly what its predecessor did: condensing propylene, quietly, around the clock. And downstream of that quiet work is a surprising amount of daily life, the food packaging in your refrigerator, medical devices in hospitals, parts in your car, the carpet under your feet.

Nobody will ever think about this exchanger while living their life. That's the point. That was always the point.

For nearly six decades, since 1968, that's been the Metalforms specialty: ordinary equipment, built extraordinarily well. We don't just build heat exchangers. We build the ones you never have to think about.
